Industrial grades of wire cloth are supplied in Plain Steel, Galvanized Steel, Spring Steel, Aluminum, Copper, Brass, Bronze, Stainless Steel, Monel, Nickel, etc. Common uses are sand screens and foundry sifters. The medium weight and heavy grades have many applications for machinery builders.

Air Filters
Apple Bins
Ash Sifters
Bakery Trays
Brake Lining Reinforcement
Cellar Windows
Chicken Brooders
Chicken Run Floors
Coal and Coke Screens
Conveyor Driers
Corn Cribs
Cotton Gins
Dipping Baskets
Electric Appliances
Fencing Masks
Fertilizer Screens
Filters
Fireplace Sceens
Foundry Sifters
Fruit Evaporators
Grading Screens
Grain Bins
Grain Screens
Grills
Incubators
Machinery Guards
Minnow Cages
Oil Filters
Ore screens
Partitions
Picker Screens
Pigment Screens
Rabbit Runs
Rat Proofing
Road Machinery
Sand & Gravel Screens
Screen Doors
Seed Grading
Shaker Screens
Silo Linings
Skylight Guards
Spark Arresters
Steam Presses
Strainers
Trays
Tree Guards
Ventilators
Window Guards

Applications Include:
Concrete Reinforcing Mesh Animal & Bird Cages Utility Meshes Hardware Cloth

Mesh

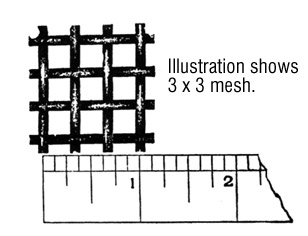

Mesh means the number of openings of fractions of openings in either direction per lineal inch of wire fabric, measured from center to center of parallel wires, as illustrated.

To determine the mesh of a given weave, measure from the center of a wire to a point one inch distant and count the intervening openings.

Space

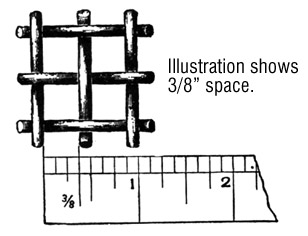

Space means the actual "clear opening" or distance between wires as illustrated.

How to Measure and Order Wire Cloth

In measuring and ordering wire cloth, specify the various meshes, space or diameter of the wire to insure proper delivery. The following table shows the variations in diameter of wire in 6 different makes of gauges and the two illustrations show the proper way to measure "mesh" and "space". For available meshes with wire diameter and percentage of open areas, see our product listings.

No. Washburn
& Moen
Gauge*
Birmingham
or Stubbe
American
or Brown
& Sharpe
United States
or U.S.
Old
English
Imperial
or English
Standard
0000 .393 .454 .460 .40625 .454 .400
000 .362 .425 .40964 .375 .425 .372
00 .331 .380 .36480 .34375 .425 .348
0 .307 .340 .32495 .3125 .340 .324
1 .283 .300 .28930 .28125 .300 .300
2 .263 .284 .25763 .26562 .284 .276
3 .244 .259 .22942 .25 .259 .252
4 .225 .238 .20431 .234375 .238 .232
5 .207 .220 .18194 .21875 .220 .212
6 .192 .203 .16202 .203125 .203 .192
7 .177 .180 .14428 .1875 .180 .176
8 .162 .165 .12849 .171875 .165 .148
9 .148 .148 .11443 .15625 .148 .144
10 .135 .134 .10189 .140625 .134 .128
11 .120 .120 .09074 .125 120 .116
12 .105 .109 .08081 .109375 .109 .104
13 .092 .095 .07196 .09375 .095 .092
14 .080 .083 .06408 .078125 .083 .080
15 .072 .072 .05707 .070312 .072 .072
16 .063 .065 .05082 .0625 .065 .064
17 .054 .058 .04525 .05625 .058 .056
18 .047 .049 .04030 .05 .049 .048
19 .041 .035 .03196 .0375 .035 .036
20 .035 .032 .02846 .034375 .0315 .032
21 .032 .028 .025347 .03125 .0295 .028
22 .028 .025 .022571 .028125 .027 .024
23 .025 .022 .0201 .025 .025 .022
24 .023 .020 .0201 .025 .025 .022
25 .020 .018 .01594 .01875 .0205 .018
26 .018 .016 .014195 .0171875 .01875 .0164
27 .017 .014 .012641 .015625 .0165 .0148
28 .016 .013 .011275 .0140625 .0155 .0136
29 .015 .012 .010025 .0125 .01375 .0124
30 .014 .010 .008928 .0109375 .01225 .0116
31 .0132 .009 .00795 .010156 .01125 .0108
32 .0128 .008 .00708 .009375 .01025 .0100
33 .0118 .007 .0063 .008593 .0095 .0092
34 .0104 .005 .00561 .007812 .009 .0084
35 .0095 .004 .005 .007031 .0075 .0076
36 .0090   .00445 .006640 .0065 .0068
37 .0085   .003965 .00625 .00575 .0060
38 .0080   .003531   .005 .0052
39 .0075   .003144   .0045 .0048
40 .0070
41 .0066
42 .0062
43 .0060
44 .0058
45 .0055
46 .0052
47 .0050
48 .0048
49 .0046
50 .0044
*Washburn and Moen Gauge is standard for all steel, galvanized, brass, copper, bronze, monel and stainless steel wire cloth, as well as wire cloth of other alloys.
